Prometheus

Installation

Déploiement Prometheus

docker run -d --rm -p 9090:9090 -v /root/prometheus/prometheus.yml:/opt/bitnami/prometheus/conf/prometheus.yml --name prometheus bitnami/prometheus:latest

prometheus.yml

global:
  scrape_interval: 15s
  scrape_timeout: 10s
  evaluation_interval: 15s
alerting:
  alertmanagers:
  - follow_redirects: true
    scheme: http
    timeout: 10s
    api_version: v2
    static_configs:
    - targets: []
scrape_configs:
- job_name: prometheus
  honor_timestamps: true
  scrape_interval: 15s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  static_configs:
  - targets:
    - localhost:9090

Déploiement Grafana

docker run -d --rm --name=grafana -p 3000:3000 grafana/grafana

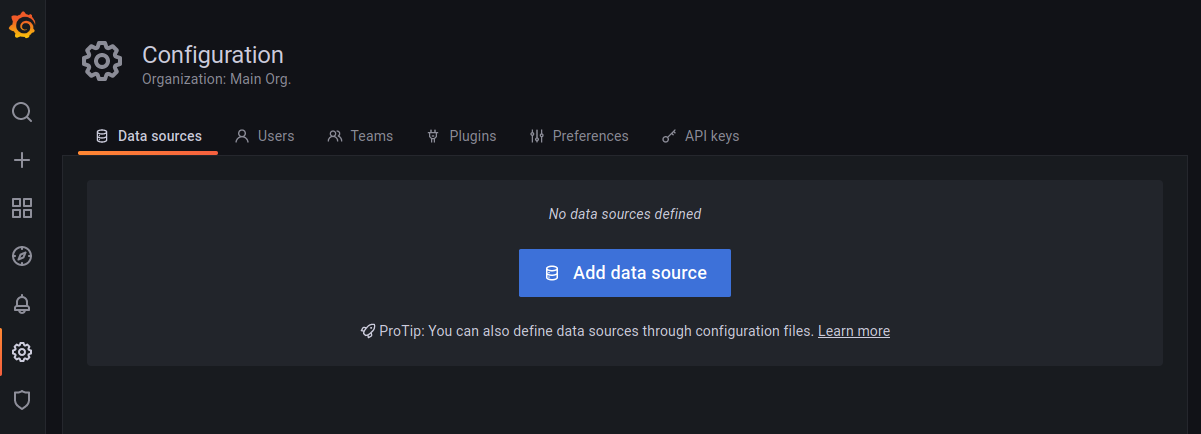

Ajouter notre prometheus

  • url : http://127.0.0.1:3000
  • user : admin
  • password : admin
grafana_data_source_01grafana_data_source_02
